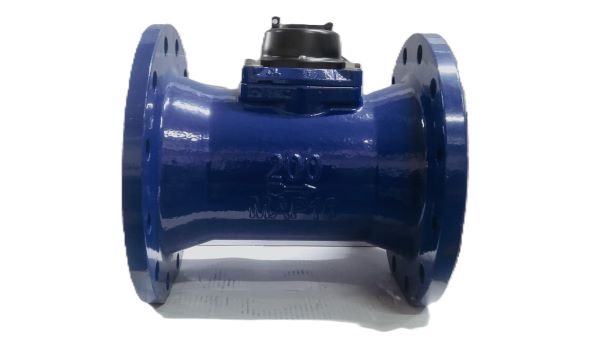

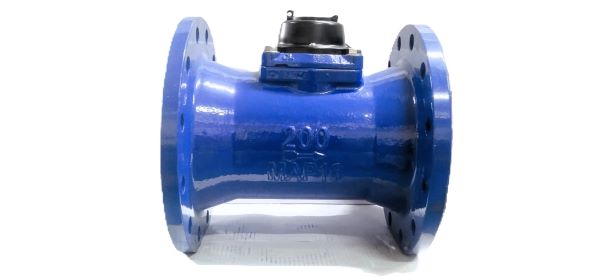

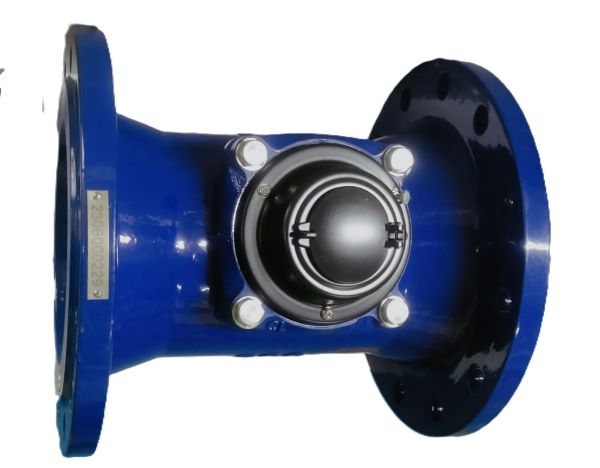

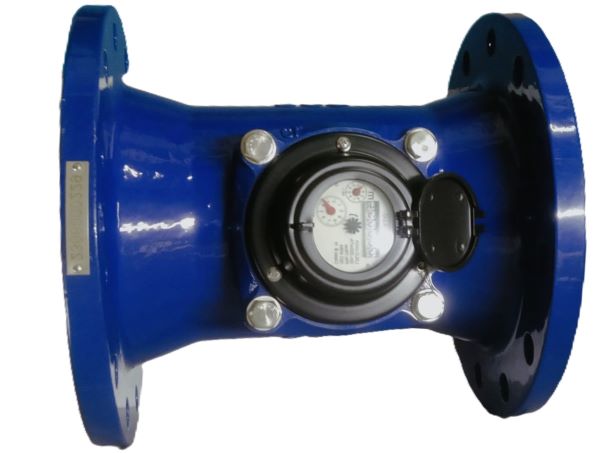

Apollo Woltman Water Meter (Bulk Meter)

Application

Apollo Woltman - type water meter is designed for measuring bulk flows of cold portable water for revenue billing in commercial or industrial applications and distribution system monitoring.

Feature

Conforming to Standard ISO4064, Class B

Extended low and high flow performance

Sealed extra dry totalizer

Water temperature up to 50* C

Maximum Corrosion Protection

Measuring Mechanism can be removed without interrupting water supply

Available in sizes from 50mm to 500mm for flow rates between 0.45m3/hr. and 1200m3/hr. Operates at temperature up to 50*C and a maximum working pressure of 16 bar. The Meter complies with all relevant international quality standards, substantially exceeding ISO4064 class n Specification for in horizontal and inclined pipelines. The removable mechanism having specific advantage in servicing without removing the with water meter from the Pipeline.

Construction Of Material

Apollo Water Meters are manufactured from higher quality material for maximum resistance to wear and corrosion. Meter Body and cover are epoxy powder coated for protection in all environments.

Cast iron

Available in sizes from 50mm to 500mm for flow rates between 0.45m3/hr. and 1200m3/hr. Operates at temperature up to 50*C and a maximum working pressure of 16 bar. The Meter complies with all relevant international quality standards, substantially exceeding ISO4064 class n Specification for in horizontal and inclined pipelines. The removable mechanism having specific advantage in servicing without removing the with water meter from the Pipeline.
